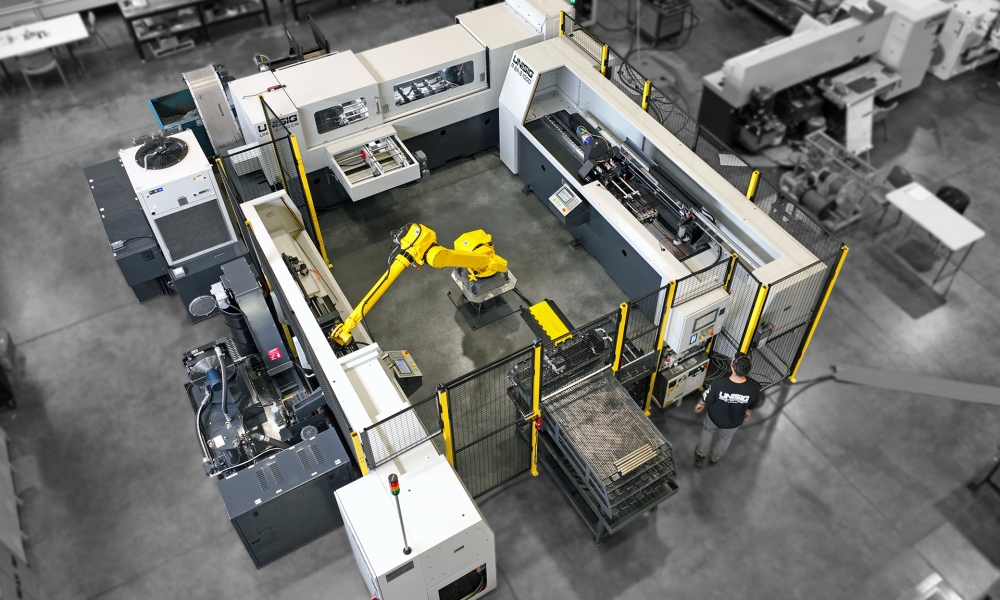

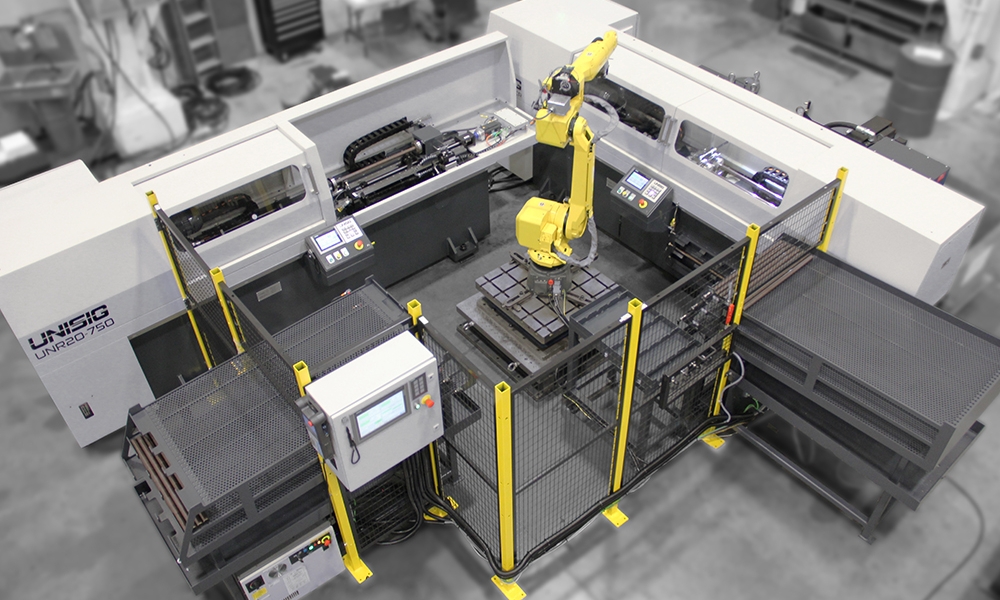

R-Cell for barrel production
Nobody builds rifle barrel production equipment like UNISIG. Before UNISIG, fully automated barrel production was only possible for the largest firearm OEMs. Now, UNISIG has opened the door for small to mid-sized as well as very large manufacturers by developing scalable barrel production cells, designed for productivity and reliability.
The complete package in productivity. UNISIG provides more than machines. Our training, process development, and long-term support give first time barrel producers everything they need to be productive upon install.
UNISIG Rifling machines require an export license and may not be available in all areas.
| Description | R-2-1 | R-2-2-1 | R-4-2-2 | R-Custom |
|---|---|---|---|---|
| Process | Gundrill + Ream Rifle |
Gundrill Ream Rifle |
Gundrill Ream Rifle |
Gundrill (optional) Ream (optional) Rifle (optional) |
| Caliber Range | 4.3 – 12.7 mm | 4.3 – 12.7 mm | 4.3 – 12.7 mm | 4.3 – 24.8 mm |
| Barrel Length | 750 mm, 1000 mm, 1500 mm | 750 mm, 1000 mm, 1500 mm | 750 mm, 1000 mm | 750 mm, 1000 mm, 1500 mm, 2000 mm |
| Machine #1 | UNR, 2-spindle | UNR, 2-spindle | UNI, 4-spindle | UNI, 1-4-spindle |
| Machine #2 | R-2A, 1-spindle | UNR, 2-spindle | UNR, 2-spindle | UNR, 1-4-spindle |
| Machine #3 | N/A | R-2A, 1-spindle | R-2A, 2-spindle | R-2A, 1-2-spindle |
| Automation | Manual Transfer | Manual Transfer Semi-Automated Fully Automated |
Fully Automated | Manual Transfer Semi-Automated Fully Automated |
| Description | R-2-1 | R-2-2-1 | R-4-2-2 | R-Custom |
|---|---|---|---|---|
| Process | Gundrill + Ream Rifle |
Gundrill Ream Rifle |
Gundrill Ream Rifle |
Gundrill (optional) Ream (optional) Rifle (optional) |
| Caliber Range | 0.170 – 0.500 in | 0.170 – 0.500 in | 0.170 – 0.500 in | 0.170 – 0.98 in |
| Barrel Length | 30 in, 40 in, 60 in | 30 in, 40 in, 60 in | 30 in, 40 in | 30 in, 40 in, 60 in, 80 in |
| Machine #1 | UNR, 2-spindle | UNR, 2-spindle | UNI, 4-spindle | UNI, 1-4-spindle |
| Machine #2 | R-2A, 1-spindle | UNR, 2-spindle | UNR, 2-spindle | UNR, 1-4-spindle |
| Machine #3 | N/A | R-2A, 1-spindle | R-2A, 2-spindle | R-2A, 1-2-spindle |
| Automation | Manual Transfer | Manual Transfer Semi-Automated Fully Automated |
Fully Automated | Manual Transfer Semi-Automated Fully Automated |
