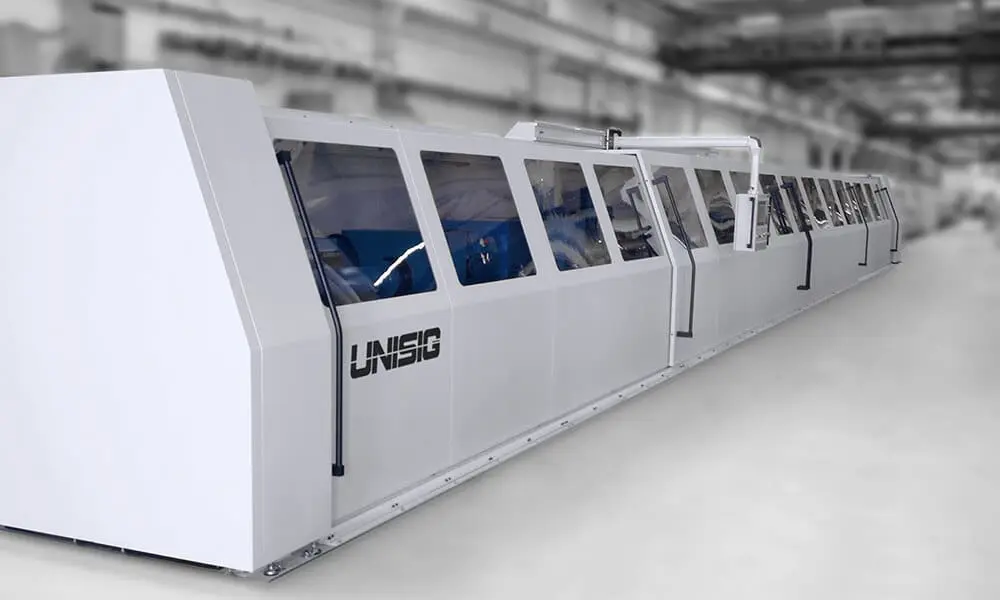

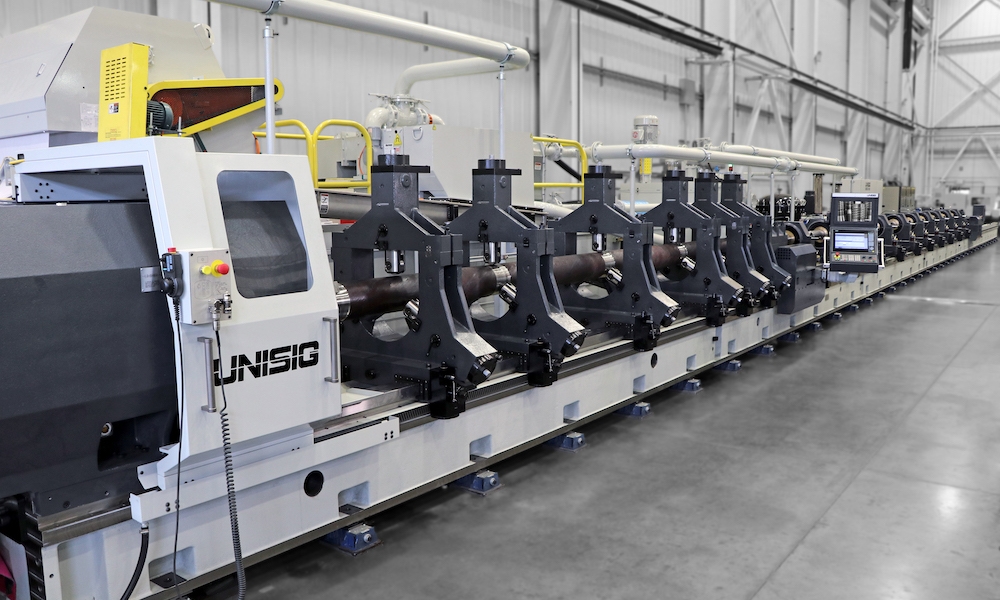

B-Series BTA Machines, > 800mm Swing

Request My Quote

Larger swing B-Series machines have virtually limitless capabilities for manufacturers that need the most in power and dimension requirements. These machines are part of a full deep hole drilling system that combines rigid deep hole drilling with a range of options that can match the most challenging of applications, while upholding the strict tolerance standards demanded by our customers.

This series uses BTA and related tools to produce centerline holes in round parts, engineered based on market demands and industry challenges across a range of applications. B-Series machines combine durable components and powerful drives with smart controls, allowing manufacturers to get the most out of their deep hole drilling investment.

Metric

Description B850 B1000 B1200 B1600 B2000
DIMENSION
Swing Over Bed 850 mm 1,000 mm 1,200 mm 1,600 mm 2,000 mm
Swing over optional gap 2,000 mm =2,200 mm 2,400 mm 2,800 mm 3,200 mm
Drilling depths 2-10 m and longer 2-10 m and longer 2-10 m and longer 2-10 m and longer 2-10 m and longer
PERFORMANCE
Max drilling diameter (Nickel Alloy) 180 mm 220 mm 300 mm 400 mm 400 mm
Max drilling diameter (Carbon Steel) 220 mm 255 mm 350 mm 500 mm 500 mm
Max tool diameter (1) high load PH 254 mm 400 mm 400 mm 550 mm 550 mm
Max tool diameter (2) large bore PH 320 mm 460 mm 500 mm 630 mm 630 mm
WORKPIECE HEADSTOCK (STANDARD)
Spindle nose ISO 702/1 A2-15 ISO 702/1 A2-15 ISO 702/1 A2-20 ISO 702/1 A2-20 ISO 702/1 A2-28
Spindle bore 160 mm 200 mm 250 mm 250 mm 250 mm
Power, continuous S1 (400/480 VAC) 95/124 kW 130/153 kW 130/153 kW 150/175 kW 150/175 kW
Spindle speed range 1-700 rpm 1-500 rpm 1-500 rpm 1-483 rpm 1-363 rpm
Headstock transmission 3 ranges, automatic 3 ranges, automatic 4 ranges, automatic 4 ranges automatic 4 ranges automatic
TOOL HEADSTOCK
Spindle nose DIN 55027 size 15 DIN 55027 size 15 DIN 55027 size 15 DIN 55027 size 20 DIN 55027 size 20
Spindle bore 160 mm 200 mm 200 mm 250 mm 250 mm
Power, continuous S1 (400/480 VAC) 95/124 kW 130/153 kW 130/153 kW 150/175 kW 150/175 kW
Spindle speed range 1-900 rpm 1-700 rpm 1-750 rpm 1-500 rpm 1-500 rpm
Headstock transmission 3 ranges, automatic 3 ranges, automatic 4 ranges, automatic 4 ranges automatic 4 ranges automatic
WORKPIECE WEIGHT
Between centers 5.5 t 6.0 t 8.0 t 15.0 t 20.0 t
(1) Workpiece steady 6.8 t 8.0 t 14.0 t 30.0 t 40.0 t
(2) Workpiece steady 9.0 t 10.0 t 22.0 t 40.0 t 50.0 t
(3) Workpiece steady 10.0 t 12.0 t 30.0 t 50.0 t 60.0 t

Inch

Description B850 B1000 B1200 B1600 B2000
DIMENSION
Swing Over Bed 33.5 39.4 in 47.2 in 63.0 in 78.7 in
Swing over optional gap 78.7 in 86.6 in 94.5 in 110.2 in 126.0 in
Drilling depths 6-32 ft and longer 6-32 ft and longer 6-32 ft and longer 6-32 ft and longer 6-32 ft and longer
PERFORMANCE
Max drilling diameter (Nickel Alloy) 7.1 in 9.0 in 11.8 in 15.7 in 15.7 in
Max drilling diameter (Carbon Steel) 8.7 in 10.0 in 13.8 in 19.7 in 19.7 in
Max tool diameter (1) high load PH 10.0 in 15.7 in 15.7 in 21.7 in 21.7 in
Max tool diameter (2) large bore PH 12.6 in 18.1 in 19.7 in 24.8 in 24.8 in
WORKPIECE HEADSTOCK (STANDARD)
Spindle nose ISO 702/1 A2-15 ISO 702/1 A2-15 ISO 702/1 A2-20 ISO 702/1 A2-20 ISO 702/1 A2-28
Spindle bore 6.3 in 7.9 in 9.8 in 9.8 in 9.8 in
Power, continuous S1 (400/480 VAC) 127/166 hp 174/205 hp 174/205 hp 200/235 hp 200/235 hp
Spindle speed range 1-700 rpm 1-500 rpm 1-500 rpm 1-483 rpm 1-363 rpm
Headstock transmission 3 ranges, automatic 3 ranges, automatic 4 ranges, automatic 4 ranges automatic 4 ranges automatic
TOOL HEADSTOCK
Spindle nose DIN 55027 size 15 DIN 55027 size 15 DIN 55027 size 15 DIN 55027 size 20 DIN 55027 size 20
Spindle bore 6.3 in 7.9 in 7.9 in 9.8 in 9.8 in
Power, continuous S1 (400/480 VAC) 127/166 hp 174/205 hp 174/205 hp 200/235 hp 200/235 hp
Spindle speed range 1-900 rpm 1-700 rpm 1-750 rpm 1-500 rpm 1-500 rpm
Headstock transmission 3 ranges, automatic 3 ranges, automatic 4 ranges, automatic 4 ranges automatic 4 ranges automatic
WORKPIECE WEIGHT
Between centers 12,130 lbs 13,230 lbs 17,640 lbs 33,080 lbs 44,100 lbs
(1) Workpiece steady 14,990 lbs 17,640 lbs 30,780 lbs 66,150 lbs 88,200 lbs
(2) Workpiece steady 19,850 lbs 22,050 lbs 48,510 lbs 88,200 lbs 110,250 lbs
(3) Workpiece steady 22.050 lbs 26,460 lbs 66,150 lbs 110,250 lbs 132,300 lbs
