USC-M Milling and Drilling Centers

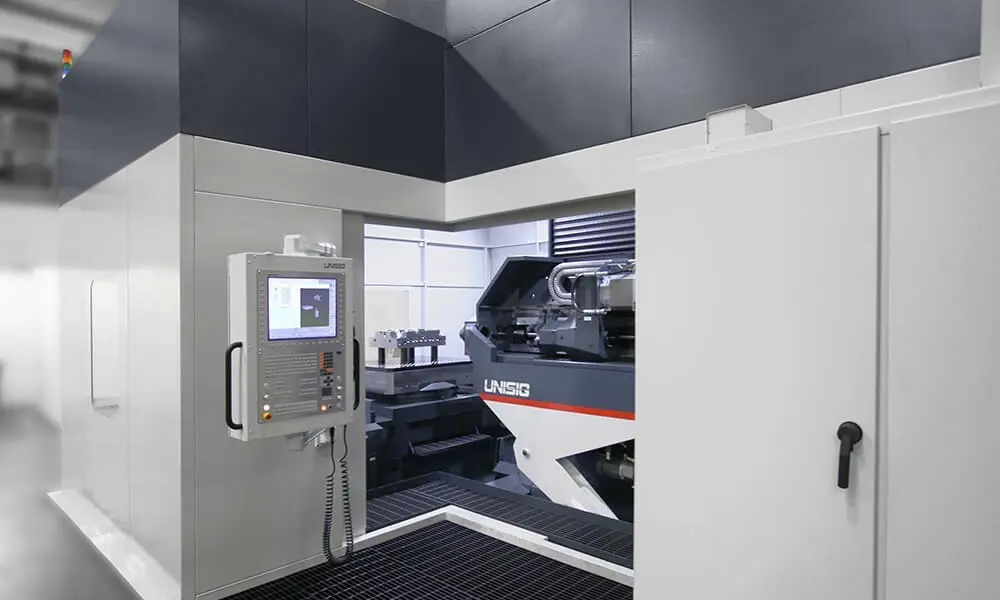

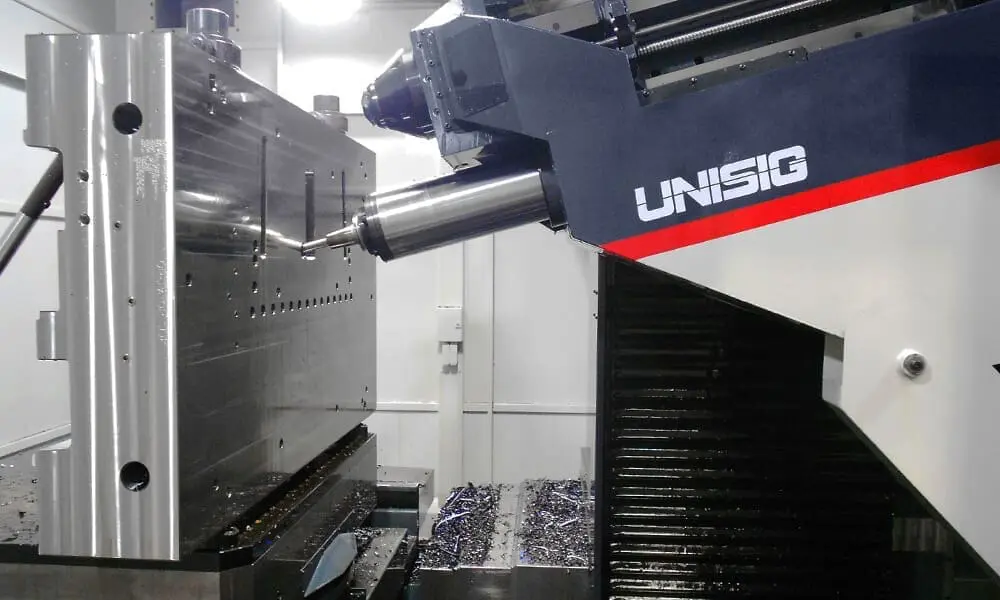

For manufacturers that have an opportunity to benefit from the combination of deep hole drilling and milling operations, UNISIG offers the USC-M series. Machines maximize production by allowing the fastest deep hole drilling with milling, with 5-axis positioning, to perform a range of complex machining in a single machine and setup.
USC-M series machines offer a full range of solutions for manufacturers, including heavy weight table capacities, a rotating A-axis, automatic tool changers, and intuitive controls on each machine. Models are available in a range of capacities and options, with engineered universal (gundrilling + machining) or dedicated (deep hole drilling, milling) spindles.
USC-M Machines are available in three base configurations to meet the full range of manufacturer needs.

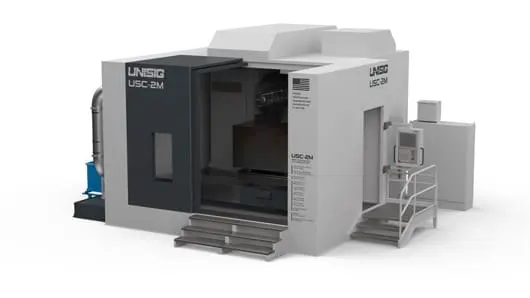

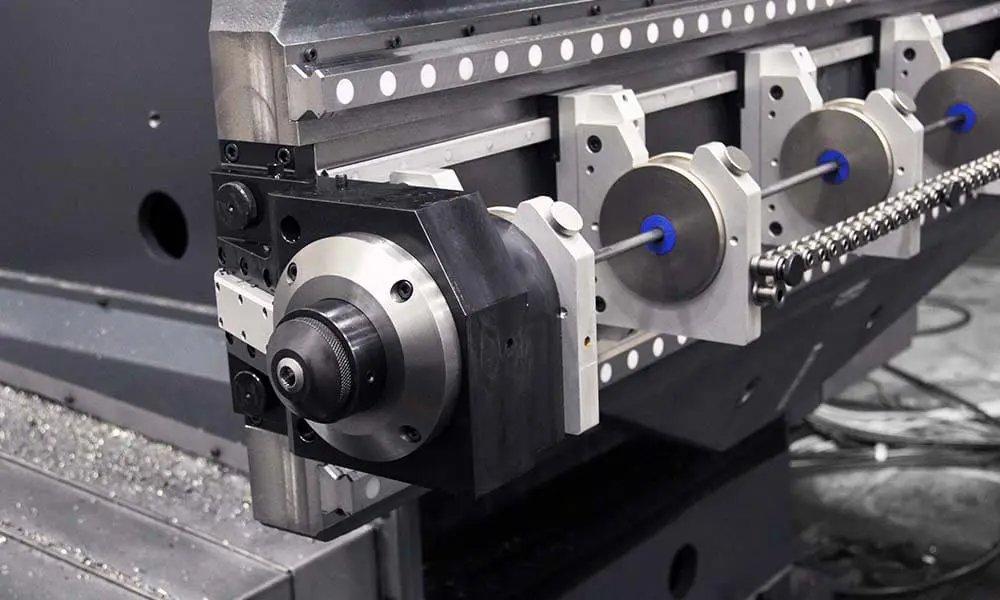

Universal gundrilling + milling combination spindle with quick changeover for a range of operations in a single machine

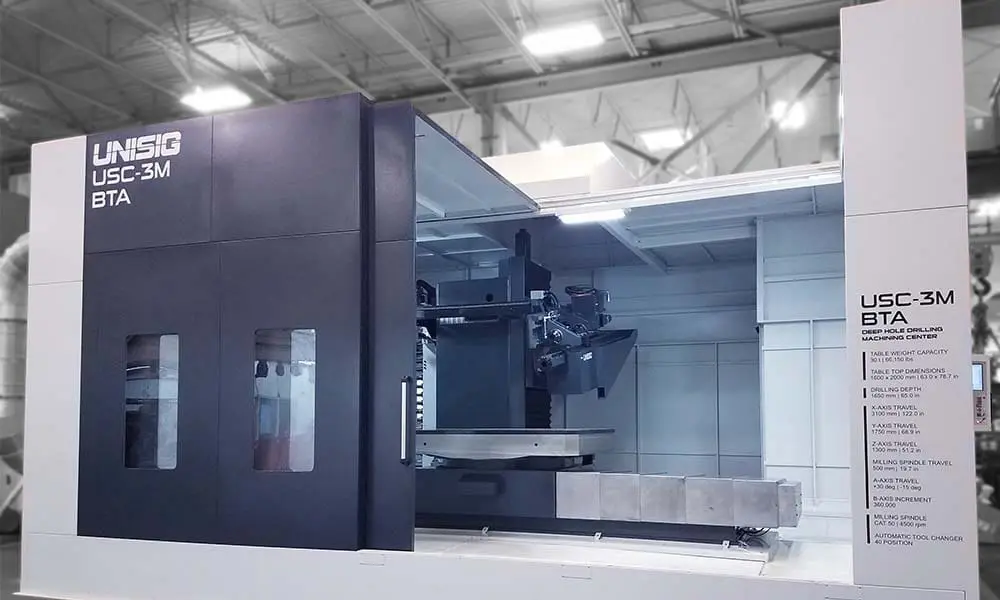

Dedicated spindles for BTA + gundrilling, and milling, for powerful machining capabilities and improved feed rates

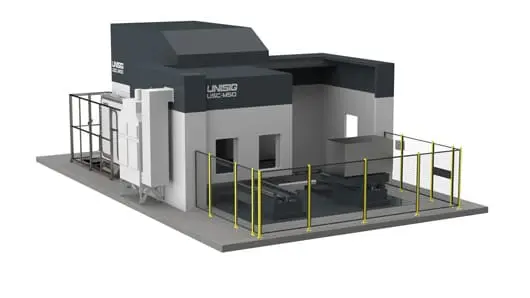

Dedicated spindles for BTA + gundrilling, and milling, plus robust options for the ultimate in milling and drilling performance
| Description | USC-2M | USC-3M | USC-2M-BTA | USC-3M-BTA | USC-M38 | USC-M50 |
|---|---|---|---|---|---|---|
| PERFORMANCE | ||||||
| Spindle Type | Universal | Universal | Dedicated | Dedicated | Dedicated | Dedicated |
| Nominal drilling depth | 1,500 mm | 1,800 mm | 1,650 mm | 1,650 mm | 1,500 mm | 1,830 mm |
| Gundrilling diameter | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm | 50 mm |
| BTA Drilling Diameter | — | — | 38 mm | 38 mm | 38 mm | 50 mm |
| TRAVELS | ||||||
| X-Axis (horizontal) | 2,100 mm | 3,100 mm | 2,100 mm | 3,100 mm | 2,200 mm | 3,100 mm |
| Y-Axis (vertical) | 1,750 mm | 1,750 mm | 1,750 mm | 1,750 mm | 1,700 mm | 2,500 mm |
| Z-axis (horizontal) | 850 mm | 1,300 mm | 850 mm | 1,300 mm | 1,000 mm | 1,550 mm |
| A-Axis inclination | -30°, +15° | -30°, +15° | -30°, +15° | -30°, +15° | -30°, +15° | -30°, +20° |
| B-axis (rotary table) | 360,000 positions | 360,000 positions | 360,000 positions | 360,000 positions | 360,000 positions | 360,000 positions |
| Drilling or Universal spindle | 2,300 mm | 2,700 mm | 2,000 mm | 2,000 mm | 1,830 mm | 2,450 mm |
| Machining spindle | – | – | 500 mm | 500 mm | 500 mm | 500 mm |
| TABLE | ||||||
| Top surface | 1,250 x 1,600 mm | 1,600 x 2,000 mm | 1,250 x 1,600 mm | 1,600 x 2,000 mm | 1,000 x 1,200 mm | 1,250 x 1,600 mm |
| Table Weight Capacity | 20 t | 30 t | 20 t | 30 t | 15 t | 23 t |
| MACHINING SPINDLE | ||||||
| Spindle nose | SK50/CAT 50 | SK50/CAT 50 | SK50/CAT 50 | SK50/CAT 50 | SK50/CAT 50 | SK50/CAT 50 |
| Maximum speed | 4,500 rpm | 4,500 rpm | 4,500 rpm | 4,500 rpm | 4,500 rpm (2-range, geared) | 4,500 rpm (2-range, geared) |
| Power (480V S1 100% / S6 60%) | 24 kW / 30 kW | 24 kW / 30 kW | 20 kW / 25 kW | 20 kW / 25 kW | 20 kW / 25 kW | 24/30 kW |
| DRILLING SPINDLE | ||||||
| Spindle nose | — | — | DHD | DHD | DHD | DHD |
| Maximum speed | — | — | 4,500 rpm | 4,500 rpm | 5,000 rpm | 5,000 rpm |
| Power (S1 100% / S6 60%) | — | — | 15 kW/ 20 kW | 15 kW/ 20 kW | 15 kW/ 20 kW | 24 kW/ 30 kW |
| TOOL CHANGER | ||||||
| Automatic Tool Changer | 60 position | 60 position | 40 position | 40 position | 120 position | 120 position |
| CONTROLS | ||||||
| CNC | Heidenhain CNC | Heidenhain CNC | Heidenhain CNC | Heidenhain CNC | Heidenhain CNC | Heidenhain CNC |
| Description | USC-2M | USC-3M | USC-2M-BTA | USC-3M-BTA | USC-M38 | USC-M50 |
|---|---|---|---|---|---|---|
| PERFORMANCE | ||||||
| Spindle Type | Universal | Universal | Dedicated | Dedicated | Dedicated | Dedicated |
| Nominal drilling depth | 59.1 in | 70.9 in | 65.0 in | 65.0 in | 59.1 in | 72.0 in |
| Gundrilling diameter | 2.0 in | 2.0 in | 2.0 in | 2.0 in | 2.0 in | 2.0 in |
| BTA Drilling Diameter | — | — | 1.5 in | 1.5 in | 1.5 in | 2.0 in |
| TRAVELS | ||||||
| X-Axis (horizontal) | 82.7 in | 122.0 in | 82.7 in | 122.0 in | 86.6 in | 122.0 in |
| Y-Axis (vertical) | 68.9 in | 68.9 in | 68.9 in | 68.9 in | 66.9 in | 98.4 in |
| Z-axis (horizontal) | 33.5 in | 51.2 in | 33.5 in | 51.2 in | 39.4 in | 61.0 in |
| A-Axis inclination | -30°, +15° | -30°, +15° | -30°, +15° | -30°, +15° | -30°, +15° | -30°, +20° |
| B-axis (rotary table) | 360,000 positions | 360,000 positions | 360,000 positions | 360,000 positions | 360,000 positions | 360,000 positions |
| Drilling or Universal spindle | 90.6 in | 106.3 in | 78.7 in | 78.7 in | 72.0 in | 96.5 in |
| Machining spindle | – | – | 19.7 in | 19.7 in | 19.7 in | 19.7 in |
| TABLE | ||||||
| Top surface | 49.2 x 63.0 in | 63.0 x 78.7 in | 49.2 x 63.0 in | 63.0 x 78.7 in | 39.4 x 47.2 in | 49.2 x 63.0 in |
| Table Weight Capacity | 44,100 lbs | 66,615 lbs | 44,100 lbs | 66,615 lbs | 33,069 lbs | 50,715 lbs |
| MACHINING SPINDLE | ||||||
| Spindle nose | SK50/CAT 50 | SK50/CAT 50 | SK50/CAT 50 | SK50/CAT 50 | SK50/CAT 50 | SK50/CAT 50 |
| Maximum speed | 4,500 rpm | 4,500 rpm | 4,500 rpm | 4,500 rpm | 4,000 rpm (2-range, geared) | 4,000 rpm (2-range, geared) |
| Power (480V S1 100% / S6 60%) | 32 hp / 40 hp | 32 hp / 40 hp | 27 hp / 34 hp | 27 hp / 34 hp | 27 hp / 34 hp | 32 hp / 40 hp |
| DRILLING SPINDLE | ||||||
| Spindle nose | — | — | DHD | DHD | DHD | DHD |
| Maximum speed | — | — | 4,500 rpm | 4,500 rpm | 5,000 rpm | 5,000 rpm |
| Power (S1 100% / S6 60%) | — | — | 20 hp/ 27 hp | 20 hp/ 27 hp | 20 hp/ 27 hp | 32 hp/ 40 hp |
| TOOL CHANGER | ||||||
| Automatic Tool Changer | 60 position | 60 position | 40 position | 40 position | 120 position | 120 position |
| CONTROLS | ||||||
| CNC | Heidenhain CNC | Heidenhain CNC | Heidenhain CNC | Heidenhain CNC | Heidenhain CNC | Heidenhain CNC |
USC-M Machine Options:
Glass Scales
Heidenhain glass scales provide direct feedback to improve axis positioning accuracy and repeatability.

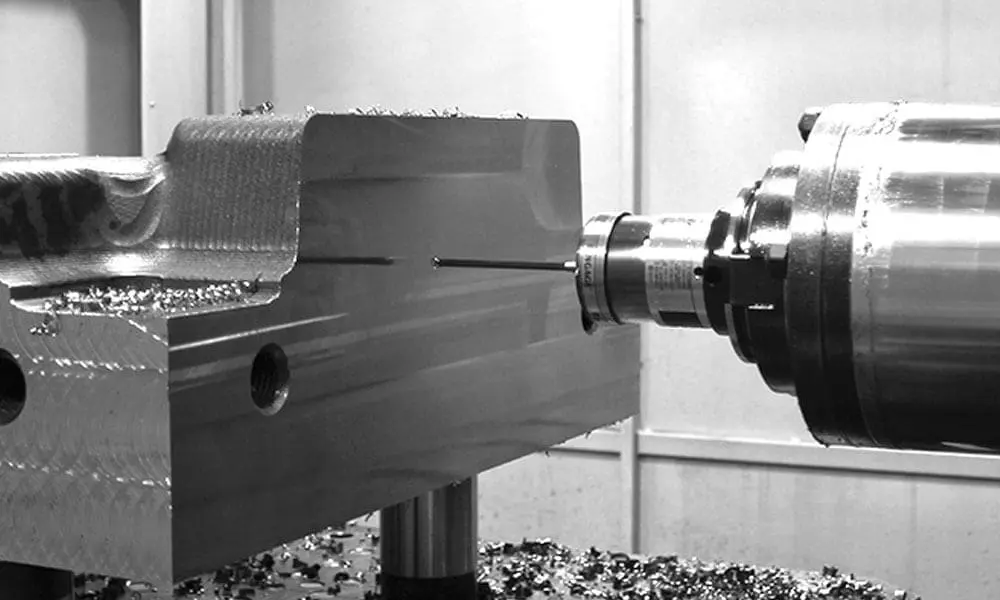

Inspection Probe
Renishaw wireless probes allow workpiece verification, job setup, and inspection on the machine.

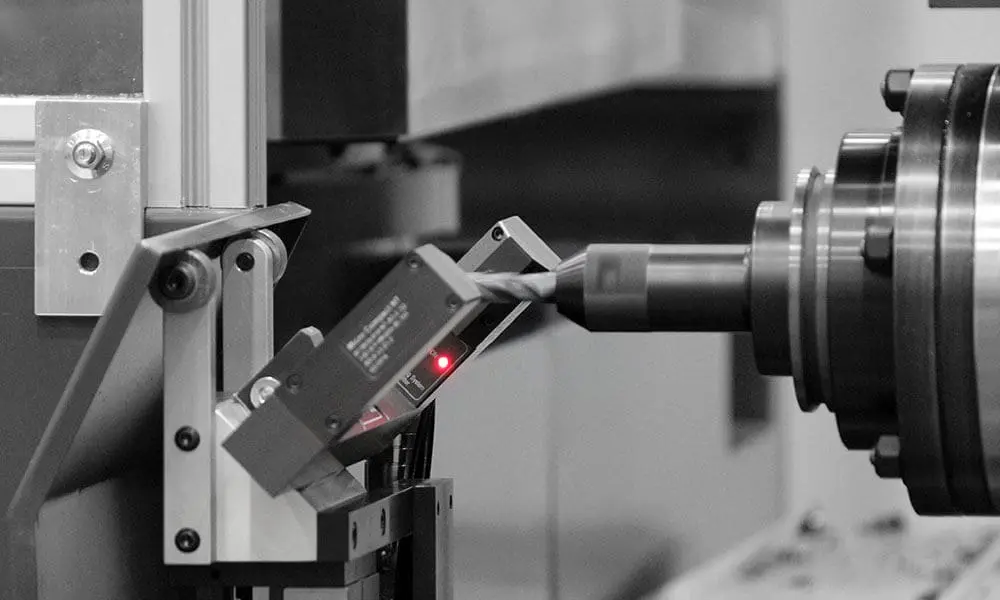

Tool Presetter
Automatic radial and axial tool setup improves accuracy and reduces tool breakage.

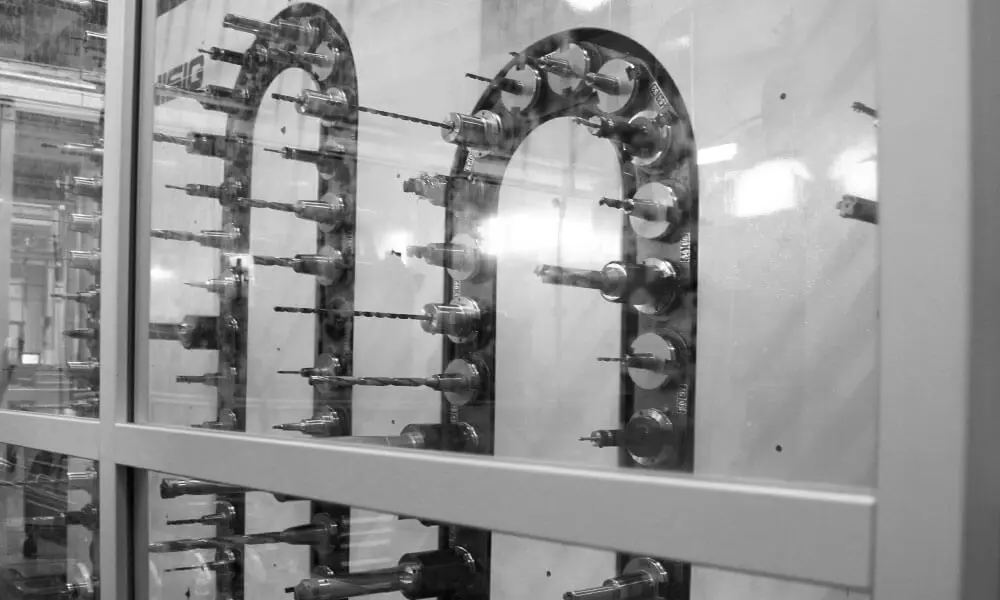

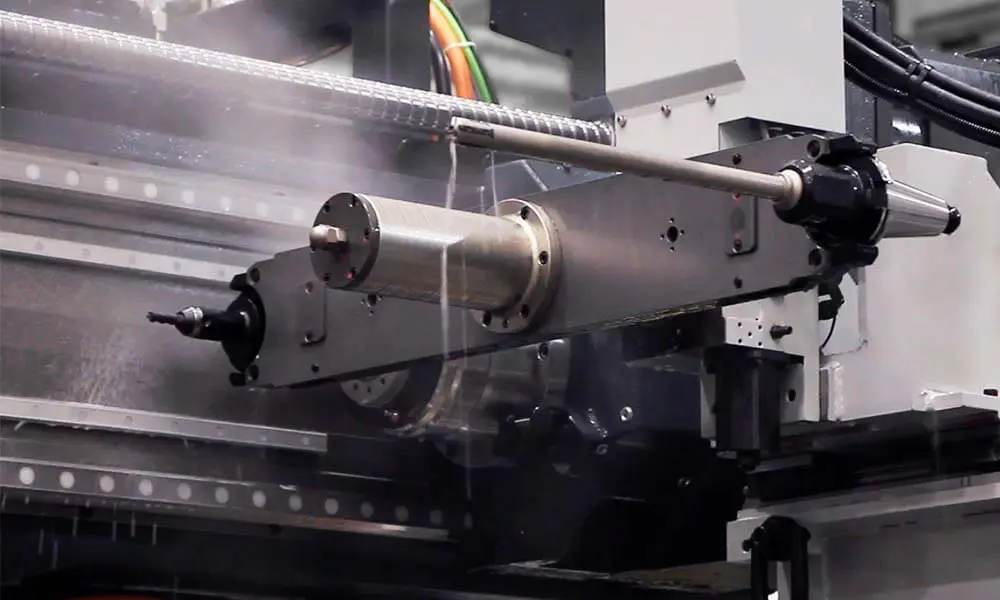

Tool Changer
Automatic tool changers are available with up to 120 tools.

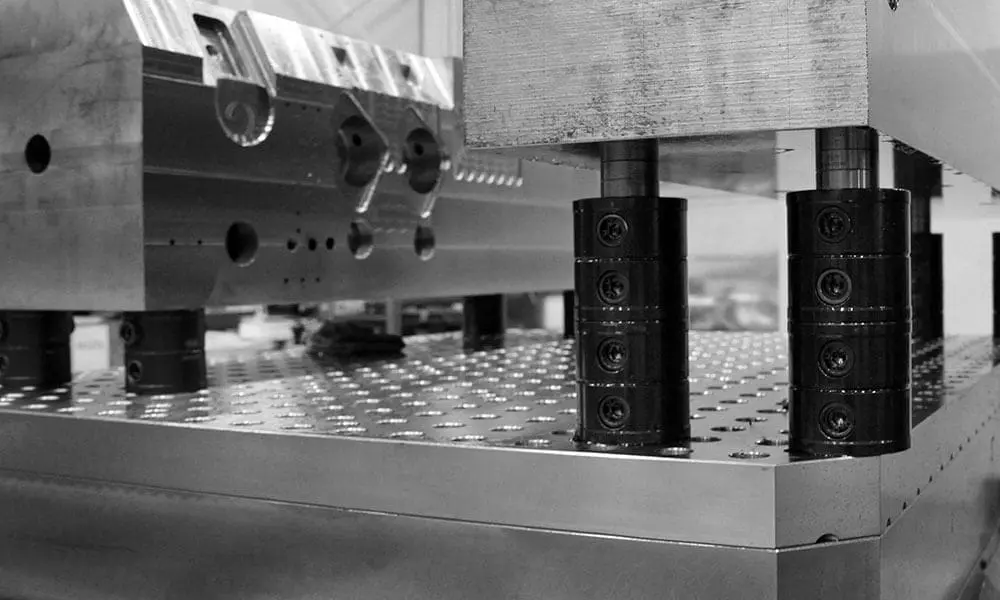

Part Fixturing
Modular fixturing substantially reduces setup and allows for process planning, which would otherwise be impossible with conventional workholding solutions.

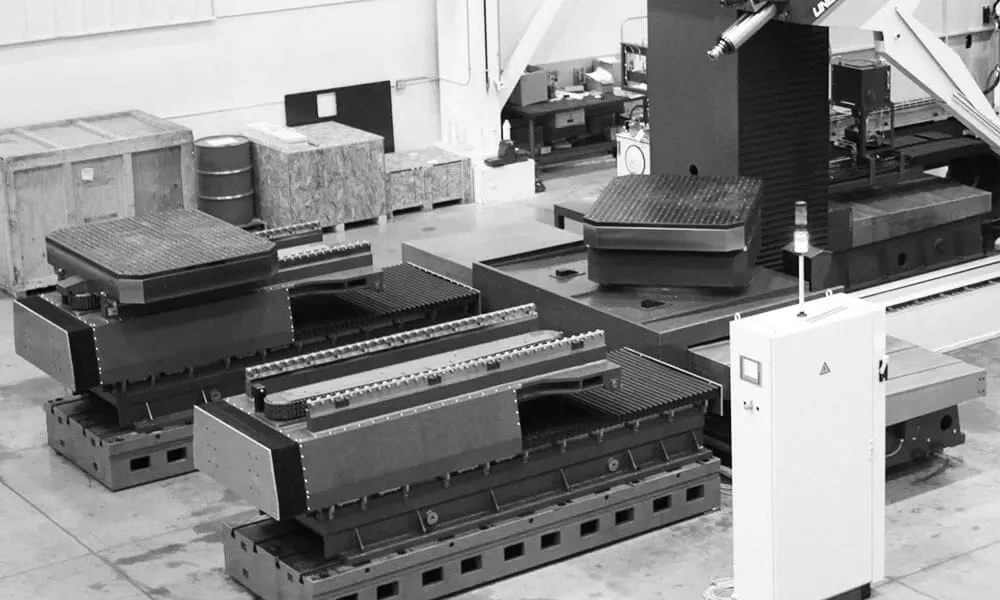

Pallet Changer
Dual pallet loaders are available to allow automatic workpiece exchange, to improve machine utilization and unattended machining.
