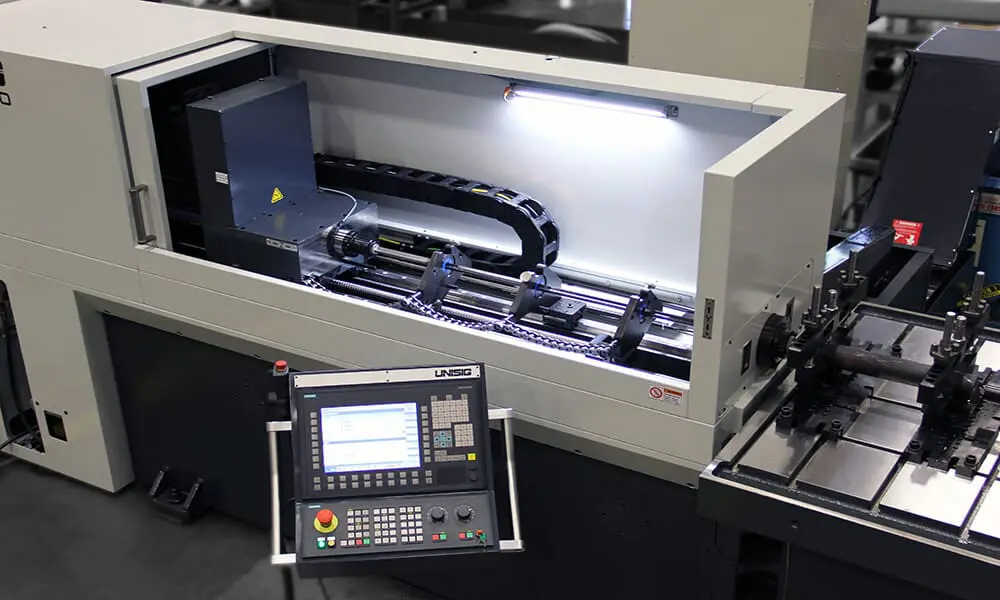

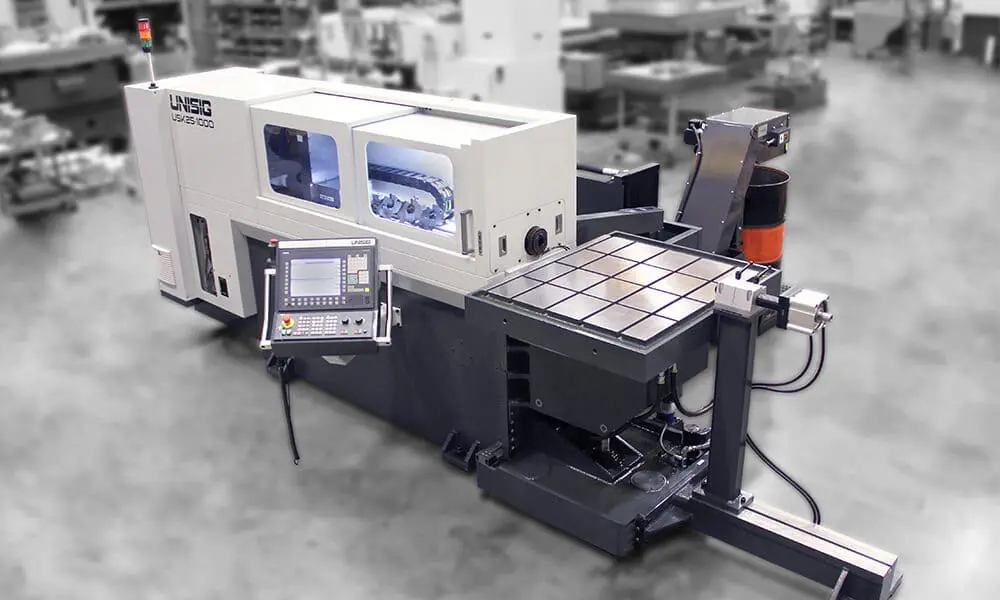

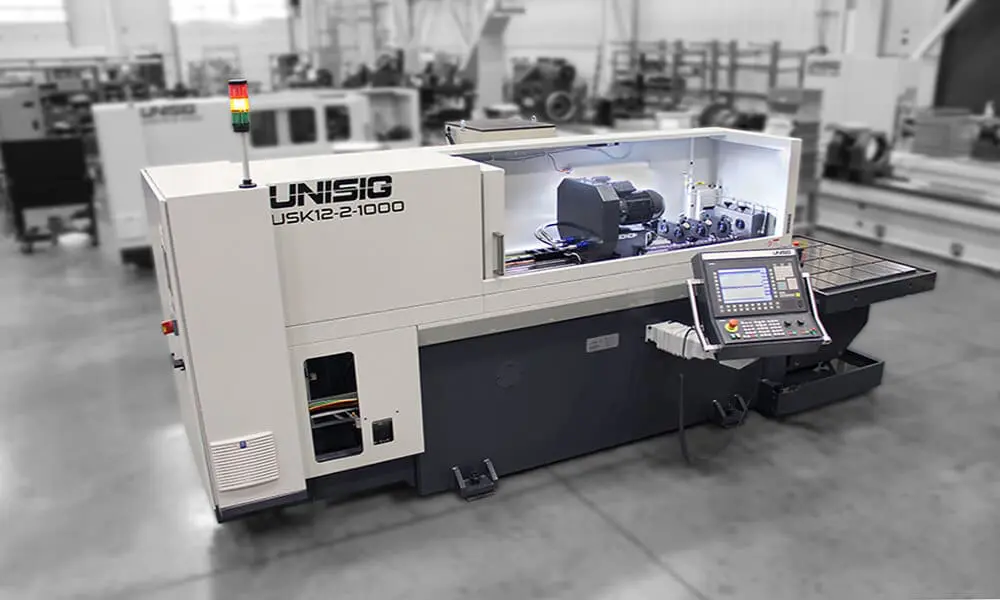

USK Series CNC Drilling Machines
Challenging holes where accuracy is imperative are drilled on USK table-type machines. X-Y table positioning allows manufacturers to achieve exact precision in hole location and tolerance achievement, even in extreme depth-to-diameter hole applications. USK machines use proven drilling technology on a rigid one-piece construction machine for unmatched accuracy and reliability when it is crucial.
USK machines are designed for off-center gundrilling applications, and can be configured with a range of options to support specific demands and applications. The USK series draws from the drilling technology proven across UNISIG’s line of deep hole drilling machines, for the most extreme accuracy capabilities on the market.
| Description | USK12-2 | USK20-2 | USK25 | USK40 |
|---|---|---|---|---|
| Tooling type | Gundrill | Gundrill | Gundrill | Gundrill |
| Number of spindles | 2 | 2 | 1 | 1 |
| Drilling diameter max | 12 mm | 20 mm | 25 mm | 40 mm |
| Drilling diameter max single spindle mode | – | 25 mm | – | – |
| Rated drill depths | 750 mm
1,000 mm |
1,000 mm
1,500 mm |
1,000 mm
1,500 mm |
1,000 mm
1,500 mm |
| Table top dimensions | 1,000 x 1,000 mm | 1,000 x 1,000 mm | 1,000 x 1,000 mm | 1,000 x 1,000 mm |
| Table capacity | 1,000 kg | 1,000 kg | 1,000 kg | 1,000 kg |
| X-travel (horizontal) | 500 mm | 500 mm | 500 mm | 500 mm |
| Y-travel (vertical) | 350 mm | 350 mm | 350 mm | 350 mm |
| Description | USK12-2 | USK20-2 | USK25 | USK40 |
|---|---|---|---|---|
| Tooling type | Gundrill | Gundrill | Gundrill | Gundrill |
| Number of spindles | 2 | 2 | 1 | 1 |
| Drilling diameter max | 0.5 in | 0.8 in | 1.0 in | 1.57 in |
| Drilling diameter max single spindle mode | – | 1.0 in | – | – |
| Rated drill depths | 29.5 in
39.4 in |
39.5 in
59.1 in |
39.5 in
59.1 in |
39.5 in
59.1 in |
| Table top dimensions | 39.4 x 39.4 in | 39.4 x 39.4 in | 39.4 x 39.4 in | 39.4 x 39.4 in |
| Table capacity | 2,205 lbs | 2,205 lbs | 2,205 lbs | 2,205 lbs |
| X-travel (horizontal) | 20 in | 20 in | 20 in | 20 in |
| Y-travel (vertical) | 14 in | 14 in | 14 in | 14 in |
