What is a BTA Drilling Machine?
BTA drilling machines are a type of deep hole drilling machine, engineered and built to maximize the performance of BTA and related tooling, in order to drill very deep, precision holes in virtually any material. Precision machinery integrates capable technology required for tool support, coolant pressure, and machine power to handle deep hole gundrilling applications accurately and efficiently.
Machines are built on proven technology and typically configured based on workpiece size and shape, required production rates, and precision specifications.
How Drilling Works on a BTA Machine
Coolant is delivered around the outside of the BTA tool, while a motor turns either the tool or the workpiece, and a feed system provides thrust to the tool to enable the deep hole drilling process.
While drilling, chips are flushed through the center of the BTA tool and exhausted through the drill tube and machine spindle. No peck drilling or interrupted feed is necessary to clear the chips.

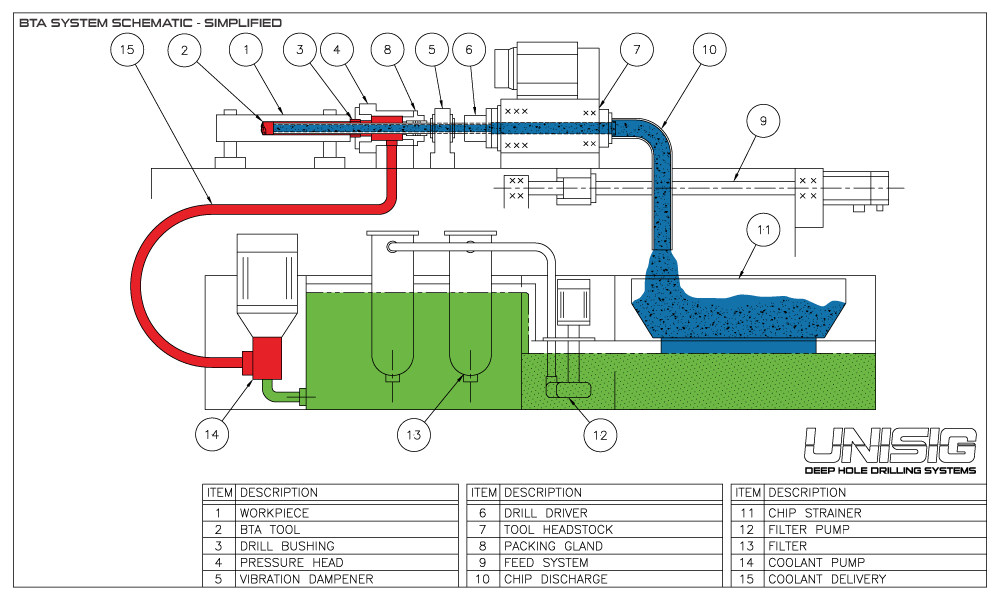

Full Schematic of a Typical BTA Drilling Machine
BTA Machine Identification
Machine and Options:
- Machine Base
[/hotspotitem]
[hotspotitem]
Machine and Options:
- Tool Headstock
[/hotspotitem]
[hotspotitem]
Machine and Options:
- Workpiece Headstock
[/hotspotitem]
[hotspotitem]
Machine and Options:
- Pressure Head Carriage
[/hotspotitem]
[hotspotitem]
Machine and Options:
- Electrical Cabinet
[/hotspotitem]
[hotspotitem]
Machine and Options:
- Operators Interface
[/hotspotitem]
[hotspotitem]
Machine and Options:
- Remote Operators Interface
[/hotspotitem]
[hotspotitem]
Machine and Options:
- Hydraulic Power Unit
[/hotspotitem]
[hotspotitem]
Machine and Options:
- Electrical Cabinet Air Conditioner
[/hotspotitem]
[hotspotitem]
Coolant System:
- Filtered Coolant Reservoir
[/hotspotitem]
[hotspotitem]
Coolant System:
- Unfiltered Coolant Reservoir
[/hotspotitem]
[hotspotitem]
Coolant System:
- High Pressure Coolant Pumps
[/hotspotitem]
[hotspotitem]
Coolant System:
- Coolant Filter System
[/hotspotitem]
[hotspotitem]
Coolant System:
- Coolant Return Trough
[/hotspotitem]
[hotspotitem]
Coolant System:
- Coolant Refrigerant Chiller
[/hotspotitem]
[hotspotitem]
Coolant System:
- Coolant Oil-Water Heat Exchanger
[/hotspotitem]
[hotspotitem]
Chip Removal:
- Chip Discharge, Rear
[/hotspotitem]
[hotspotitem]
Chip Removal:
- Chip Discharge, Forward
[/hotspotitem]
[hotspotitem]
Chip Removal:
- Chip Conveyor
- Chip Crusher/Wringer
[/hotspotitem]
[hotspotitem]
Chip Removal:
- Chip Baskets
[/hotspotitem]
[hotspotitem]
Accessories:
- Pressure Head
- Pressure Head Mounting Reducer
[/hotspotitem]
[hotspotitem]
Accessories:
- Vibration Dampener Carriage
- Vibration Dampener Cartridge
- Vibration Dampener Mounting Reducer
[/hotspotitem]
[hotspotitem]
Accessories:
- Rotary Union and Hydraulic Circuit for Skiving
- Servo Driven Actuator for Bottle Boring Tools
[/hotspotitem]
[hotspotitem]
Tooling:
- Master Bushing System
- Drill Bushings
[/hotspotitem]
[hotspotitem]
Tooling:
- Packing Gland
- Packing Gland Mounting Reducer
[/hotspotitem]
[hotspotitem]
Tooling:
- Drill Tube
- Thread Adapter
[/hotspotitem]
[hotspotitem]
Tooling:
- Vibration Dampener Collet
[/hotspotitem]
[hotspotitem]
Tooling:
- Tube Clamp Spindle Adapter
- Tube Clamp Insert and Seal
[/hotspotitem]
[hotspotitem]
Workholding:
- Pressure Head Chuck
- Offset Jaw Sets
- Clamping Cones
[/hotspotitem]
[hotspotitem]
Workholding:
- Workpiece Chuck, Manual
- Workpiece Chuck, Automatic
- Offset Jaw Sets
- Clamping Cones
- Breakthrough Seal
- Lantern for Pull Boring
[/hotspotitem]
[hotspotitem]
Workholding:
- Workpiece Steady Rest, Manual
- Workpiece Steady Rest, Automatic
[/hotspotitem][/cq_vc_hotspot]
Key Components for BTA Deep Hole Drilling Machines
Several components are present on typical BTA drilling machines, regardless of configuration.
Drill Guide Bushing
A precision drill guide bushing contacts the workpiece to guide the BTA tool as it prepares to drill. This bushing allows the tool to start in the proper location, and with the correct hole diameter, both essential for accurate deep hole drilling. The drill guide bushing also works to seal against the workpiece to contain the coolant during the drilling process.
Pressure Head
A pressure head seals around the BTA tool and drill guide bushing, introducing the coolant around the outside of the tool, and for chip evacuation throughout the drilling process.
Vibration Dampeners
Vibration dampeners support long drills under the speed of rotation while transmitting torque, stabilizing the tool for an accurate drilling process. These devices are equipped with rotating bearings and inserts that contact the tool to provide the vibration dampening benefits. Longer travel machines may have multiple traveling vibration dampeners, while shorter machines may not require any.
Drilling Spindle
High power, torque precision, and low vibration are important for productive BTA drilling. The spindle transmits the power and torque from the motor, to the tool. Chips and coolant are evacuated through a hole in the center of the spindle during operation.
Coolant System
The reliability and performance of the BTA deep hole drilling process depends heavily on the machine coolant system. A logically designed reservoir system starts by holding coolant, and a high-volume pump groups works to delivery the cutting fluid to the BTA tool. Once the coolant progresses through the metal cutting operation, it is enters the filtration system. Low-micron coolant filtration, and filter condition feedback prevent the accumulation of chips and small particles, leading to less down time, longer tool life, and improved surface finishes.
Coolant Temperature Control
The drilling headstock and coolant pumping system generate heat, which can have a negative impact on drilling factors such as tool life and accuracy, as well as the operating conditions around the machine. To manage the heat, either a heat exchanger or chiller is required to maintain cutting fluid at the proper temperature.
