Deutsch| Number of Spindles | 2 |
|---|---|
| Process Type | Gundrill |
| Hole Location | Off-Center |
| Workpiece Shape | Cylindrical, Cubic |
| METRIC SPECIFICATIONS |
|
| Hole Diameter Min (mm) | 1.4 |
| Drill Diameter Max (mm) | 12 |
| Hole Diameter Max (mm) | 19 |
| Hole Depth Max (mm) | 1000 |
| Workpiece dimensions (mm) | 750, 1000 |
| Workpiece weight max (kg) | 1000 |
| IMPERIAL SPECIFICATIONS |
|
| Hole Diameter Min (in) | 0.06 |
| Drill Diameter Max (in) | 0.47 |
| Hole Diameter Max (in) | 0.75 |
| Hole Depth Max (in) | 39.37 |
| Workpiece dimensions (in) | 30, 40 |
| Workpiece weight max (lbs) | 2205 |

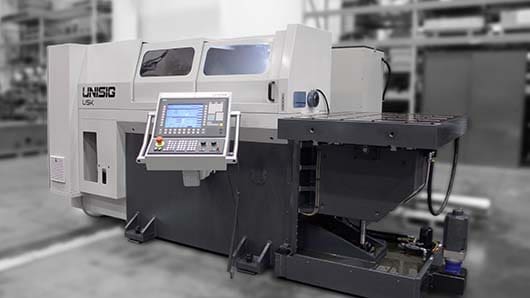

USK12-2
CNC table gundrilling machine – dual spindle
