Deutsch| Number of Spindles | 1 |
|---|---|
| Process Type | BottleBore, BTA, Ejector, Skive & Burnish, Trepan |
| Hole Location | On-Center |
| Workpiece Shape | Cylindrical |
| METRIC SPECIFICATIONS |
|
| Hole Diameter Min (mm) | 75 |
| Drill Diameter Max (mm) | 350 |
| Hole Diameter Max (mm) | 500 |
| Hole Depth Max (mm) | 20000 |
| Workpiece dimensions (mm) | 4000, 6000, 8000, 10000, 12000, 16000, 20000 |
| Workpiece weight max (kg) | 30000 |
| IMPERIAL SPECIFICATIONS |
|
| Hole Diameter Min (in) | 2.95 |
| Drill Diameter Max (in) | 13.78 |
| Hole Diameter Max (in) | 20 |
| Hole Depth Max (in) | 787.4 |
| Workpiece dimensions (in) | 157, 240, 315, 394, 472, 630, 787 |
| Workpiece weight max (lbs) | 66150 |

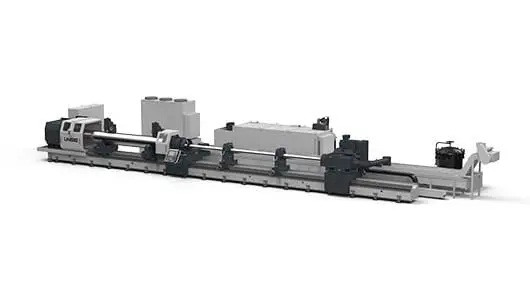

B1200
BTA drilling machine over 800mm swing
