Deutsch| Number of Spindles | 2 |
|---|---|
| Process Type | BTA, Gundrill, Milling |
| Hole Location | Off-Center |
| Workpiece Shape | Cubic |
| METRIC SPECIFICATIONS |
|
| Hole Diameter Min (mm) | 5 |
| Drill Diameter Max (mm) | 50 |
| Hole Diameter Max (mm) | 50 |
| Hole Depth Max (mm) | 1500 |
| Workpiece dimensions (mm) | 2000 |
| Workpiece weight max (kg) | 15000 |
| IMPERIAL SPECIFICATIONS |
|
| Hole Diameter Min (in) | 0.2 |
| Drill Diameter Max (in) | 2 |
| Hole Diameter Max (in) | 2 |
| Hole Depth Max (in) | 59.06 |
| Workpiece dimensions (in) | 60 |
| Workpiece weight max (lbs) | 33075 |

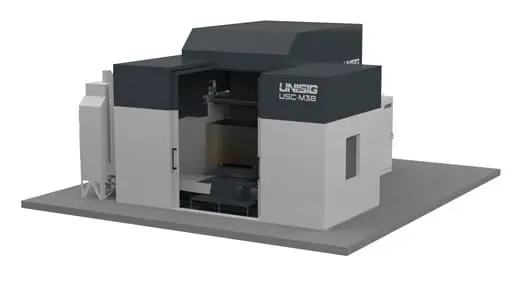

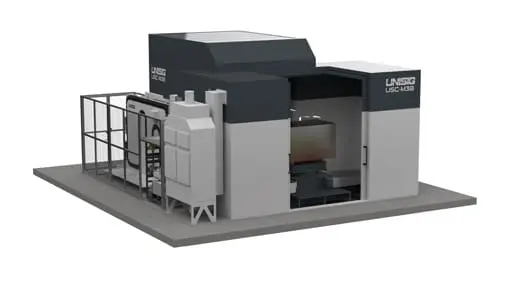

USC-M38
5-axis mold milling and drilling centers, dedicated geared milling spindle, BTA and Gundrill system
