Deutsch| Number of Spindles | 1 |
|---|---|
| Process Type | BottleBore, BTA, Ejector, Skive & Burnish, Trepan |
| Hole Location | On-Center |
| Workpiece Shape | Cylindrical |
| METRIC SPECIFICATIONS |
|
| Hole Diameter Min (mm) | 16 |
| Drill Diameter Max (mm) | 80 |
| Hole Diameter Max (mm) | 100 |
| Hole Depth Max (mm) | 4000 |
| Workpiece dimensions (mm) | 1500, 2000, 3000, 4000 |
| Workpiece weight max (kg) | 2000 |
| IMPERIAL SPECIFICATIONS |
|
| Hole Diameter Min (in) | 0.63 |
| Drill Diameter Max (in) | 3.15 |
| Hole Diameter Max (in) | 4 |
| Hole Depth Max (in) | 157.48 |
| Workpiece dimensions (in) | 60, 80, 120, 157 |
| Workpiece weight max (lbs) | 4410 |

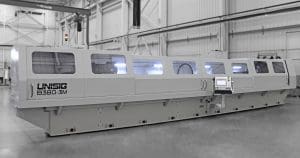

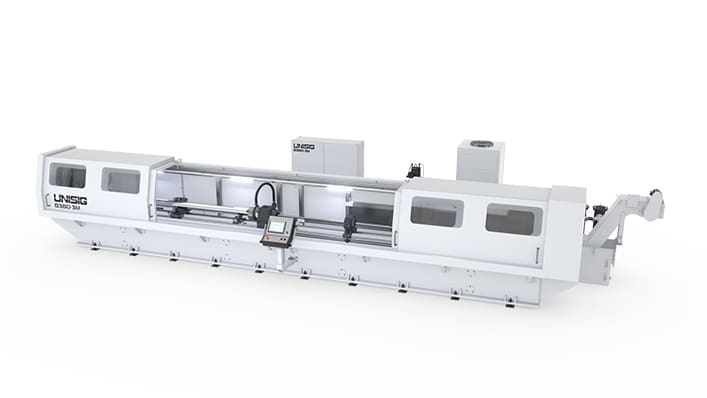

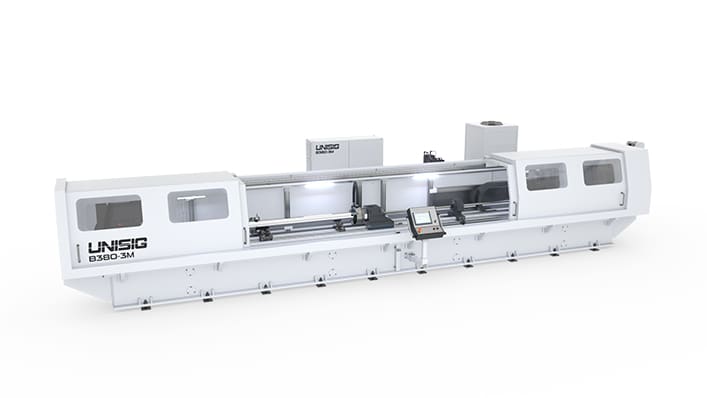

B380 UNISIG BTA deep hole drilling machine
BTA drilling machine under 800mm swing
