Deutsch| Number of Spindles | 2, 4 |
|---|---|
| Process Type | Reaming, Rifling |
| Hole Location | On-Center |
| Workpiece Shape | Cylindrical |
| METRIC SPECIFICATIONS |
|
| Hole Diameter Min (mm) | 4 |
| Drill Diameter Max (mm) | 12.7 |
| Hole Diameter Max (mm) | 12 |
| Hole Depth Max (mm) | 1000 |
| Workpiece dimensions (mm) | 750, 1000 |
| Workpiece weight max (kg) | 20 |
| IMPERIAL SPECIFICATIONS |
|
| Hole Diameter Min (in) | 0.16 |
| Drill Diameter Max (in) | 0.5 |
| Hole Diameter Max (in) | 0.5 |
| Hole Depth Max (in) | 39.4 |
| Workpiece dimensions (in) | 30, 40 |
| Workpiece weight max (lbs) | 44 |

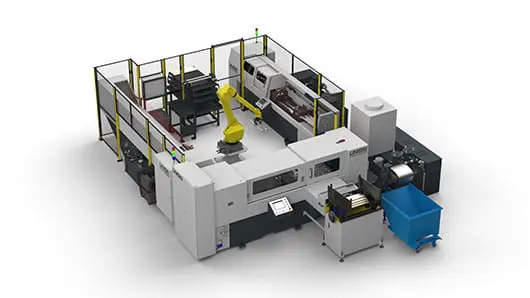

R-Cell 4-2-2
Manufacturing cell for small caliber rifle barrels with automation
