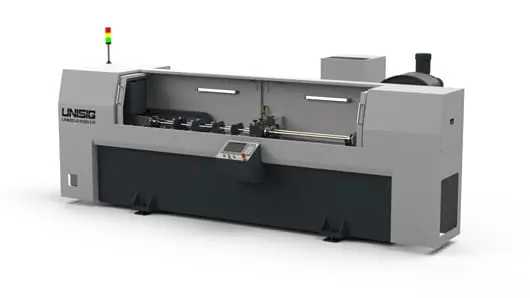

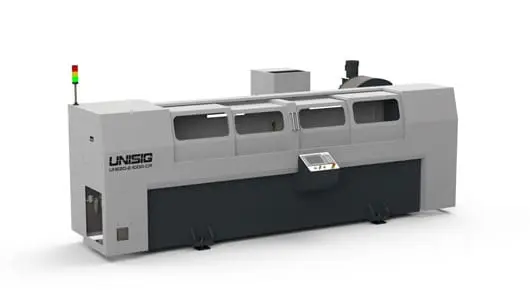

UNE20-2

Standard gundrilling machine – dual spindle

Category: UNE Gundrilling Machines

Additional information

Number of Spindles	2
Process Type	Gundrill
Hole Location	On-Center
Workpiece Shape	Cylindrical
METRIC SPECIFICATIONS
Hole Diameter Min (mm)	2
Drill Diameter Max (mm)	20
Hole Diameter Max (mm)	25
Hole Depth Max (mm)	1500
Workpiece dimensions (mm)	750, 1000, 1500
Workpiece weight max (kg)	20
IMPERIAL SPECIFICATIONS
Hole Diameter Min (in)	0.08
Drill Diameter Max (in)	0.79
Hole Diameter Max (in)	1
Hole Depth Max (in)	59.06
Workpiece dimensions (in)	30, 40, 60
Workpiece weight max (lbs)	44
