Deutsch| Number of Spindles | 2 |
|---|---|
| Process Type | Gundrill |
| Hole Location | On-Center |
| Workpiece Shape | Cylindrical |
| METRIC SPECIFICATIONS |
|
| Hole Diameter Min (mm) | 0.8 |
| Drill Diameter Max (mm) | 6 |
| Hole Diameter Max (mm) | 6 |
| Hole Depth Max (mm) | 750 |
| Workpiece dimensions (mm) | 250, 750 |
| Workpiece weight max (kg) | 5 |
| IMPERIAL SPECIFICATIONS |
|
| Hole Diameter Min (in) | 0.03 |
| Drill Diameter Max (in) | 0.25 |
| Hole Diameter Max (in) | .25 |
| Hole Depth Max (in) | 29.53 |
| Workpiece dimensions (in) | 10, 30 |
| Workpiece weight max (lbs) | 11 |

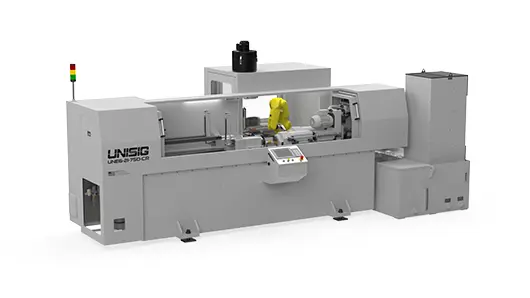

UNE6-2i
Small diameter and medical component gundrilling machine – dual spindle
