Deutsch| Number of Spindles | 2, 4 |
|---|---|
| Process Type | Gundrill |
| Hole Location | On-Center |
| Workpiece Shape | Cylindrical |
| METRIC SPECIFICATIONS |
|
| Hole Diameter Min (mm) | 8 |
| Drill Diameter Max (mm) | 25 |
| Hole Diameter Max (mm) | 25 |
| Hole Depth Max (mm) | 1500 |
| Workpiece dimensions (mm) | 750, 1000, 1500 |
| Workpiece weight max (kg) | 25 |
| IMPERIAL SPECIFICATIONS |
|
| Hole Diameter Min (in) | 0.31 |
| Drill Diameter Max (in) | 1 |
| Hole Diameter Max (in) | 1 |
| Hole Depth Max (in) | 59.06 |
| Workpiece dimensions (in) | 30, 40, 60 |
| Workpiece weight max (lbs) | 55 |

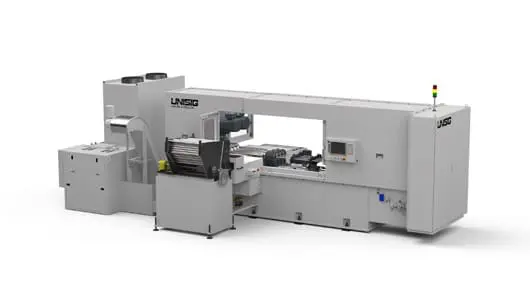

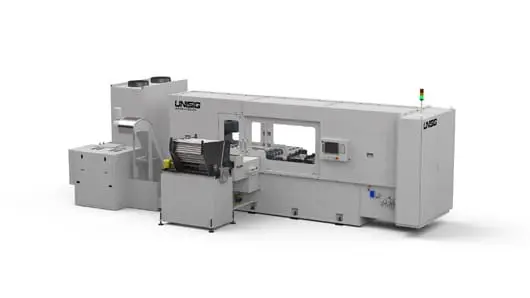

UNI-25
Production gundrilling machine – multiple spindle
