Number of Spindles | 2, 4 |
---|---|
Process Type | Gundrill |
Hole Location | Off-Center |
Workpiece Shape | Cylindrical |
METRIC SPECIFICATIONS |
|
Hole Diameter Min (mm) | 4 |
Drill Diameter Max (mm) | 25 |
Hole Diameter Max (mm) | 25 |
Hole Depth Max (mm) | 1000 |
Workpiece dimensions (mm) | 500, 750, 1000 |
Workpiece weight max (kg) | 250 |
IMPERIAL SPECIFICATIONS |
|
Hole Diameter Min (in) | 0.16 |
Drill Diameter Max (in) | 1 |
Hole Diameter Max (in) | 1 |
Hole Depth Max (in) | 39.4 |
Workpiece dimensions (in) | 20, 30, 40 |
Workpiece weight max (lbs) | 551 |

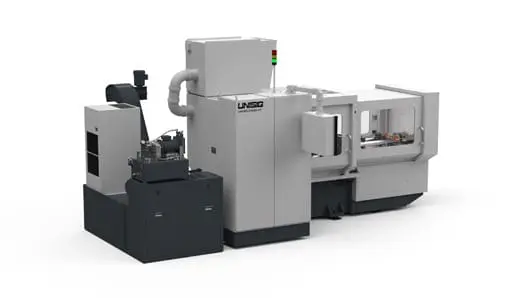

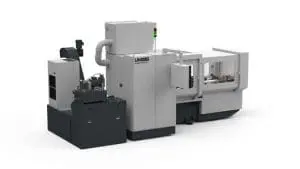

UNI-XY
CNC Gundrilling machines for production drilling of off-center holes with multiple spindles. Rotary tables and and robot ready options allow complex parts to be gundrilled automatically.
