Deutsch| Number of Spindles | 2 |
|---|---|
| Process Type | Reaming |
| Hole Location | On-Center |
| Workpiece Shape | Cylindrical |
| METRIC SPECIFICATIONS |
|
| Hole Diameter Min (mm) | 1.4 |
| Drill Diameter Max (mm) | 12 |
| Hole Diameter Max (mm) | 19 |
| Hole Depth Max (mm) | 1500 |
| Workpiece dimensions (mm) | 750, 1000, 1500 |
| Workpiece weight max (kg) | 12 |
| IMPERIAL SPECIFICATIONS |
|
| Hole Diameter Min (in) | 0.06 |
| Drill Diameter Max (in) | 0.5 |
| Hole Diameter Max (in) | 0.75 |
| Hole Depth Max (in) | 59.06 |
| Workpiece dimensions (in) | 30, 40, 60 |
| Workpiece weight max (lbs) | 26 |

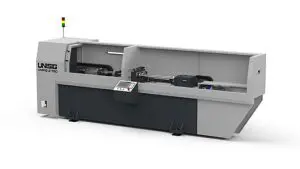

UNR-12-2
Reaming machines with two spindles for high volume production
