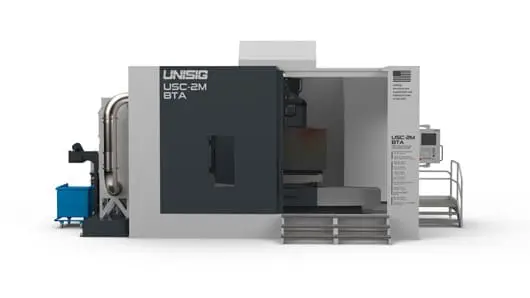

USC-2M-BTA

5-axis mold milling and drilling center, dedicated milling spindle, Gundrill and BTA drilling systems

Category: USC-M Milling and Drilling Centers

Additional information

Number of Spindles	2
Process Type	BTA, Gundrill, Milling
Hole Location	Off-Center
Workpiece Shape	Cubic
METRIC SPECIFICATIONS
Hole Diameter Min (mm)	5
Drill Diameter Max (mm)	50
Hole Diameter Max (mm)	50
Hole Depth Max (mm)	1650
Workpiece dimensions (mm)	2000
Workpiece weight max (kg)	20000
IMPERIAL SPECIFICATIONS
Hole Diameter Min (in)	0.2
Drill Diameter Max (in)	2
Hole Diameter Max (in)	2
Hole Depth Max (in)	64.96
Workpiece dimensions (in)	65
Workpiece weight max (lbs)	44100
