Deutsch| Number of Spindles | 2 |
|---|---|
| Process Type | BTA, Gundrill, Milling |
| Hole Location | Off-Center |
| Workpiece Shape | Cubic |
| METRIC SPECIFICATIONS |
|
| Hole Diameter Min (mm) | 5 |
| Drill Diameter Max (mm) | 50 |
| Hole Diameter Max (mm) | 50 |
| Hole Depth Max (mm) | 1650 |
| Workpiece dimensions (mm) | 3000 |
| Workpiece weight max (kg) | 30000 |
| IMPERIAL SPECIFICATIONS |
|
| Hole Diameter Min (in) | 0.2 |
| Drill Diameter Max (in) | 2 |
| Hole Diameter Max (in) | 2 |
| Hole Depth Max (in) | 64.96 |
| Workpiece dimensions (in) | 65 |
| Workpiece weight max (lbs) | 66150 |

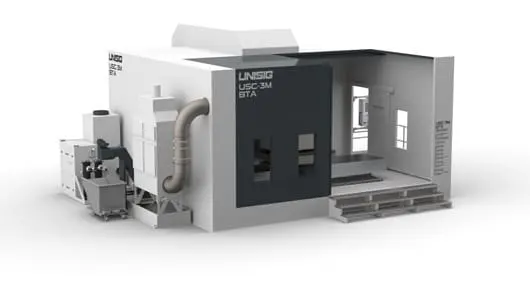

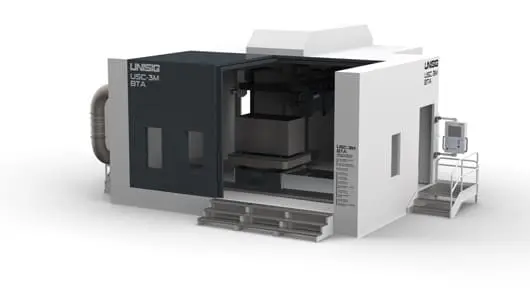

USC-3M-BTA
5-axis mold milling and drilling center, dedicated milling spindle, Gundrill and BTA drilling systems
