Deutsch| Number of Spindles | 2, 3 |
|---|---|
| Process Type | BTA, Gundrill |
| Hole Location | Off-Center |
| Workpiece Shape | Cylindrical, Cubic |
| METRIC SPECIFICATIONS |
|
| Hole Diameter Min (mm) | 12 |
| Drill Diameter Max (mm) | 65 |
| Hole Diameter Max (mm) | 65 |
| Hole Depth Max (mm) | 1000 |
| Workpiece dimensions (mm) | 1000 |
| Workpiece weight max (kg) | 100000 |
| IMPERIAL SPECIFICATIONS |
|
| Hole Diameter Min (in) | 0.47 |
| Drill Diameter Max (in) | 2.56 |
| Hole Diameter Max (in) | 2.56 |
| Hole Depth Max (in) | 39.37 |
| Workpiece dimensions (in) | 40 |
| Workpiece weight max (lbs) | 220500 |

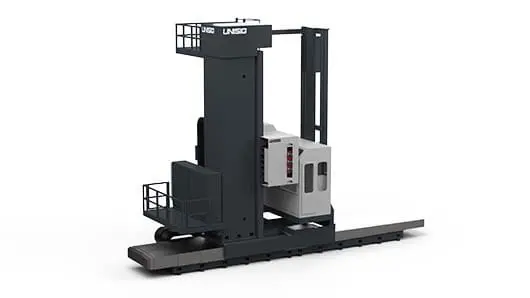

USC-TS65
Tube sheet drilling machine
