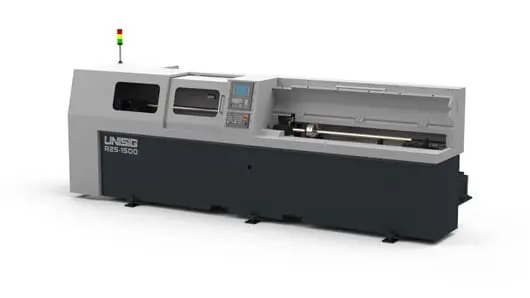

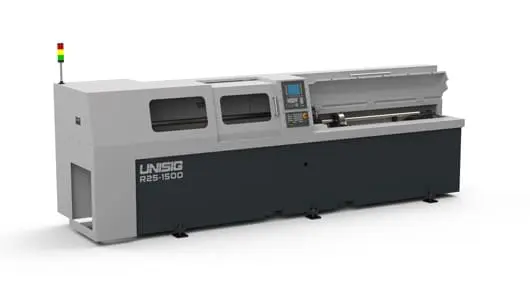

| Number of Spindles | 1 |
|---|---|
| Process Type | Rifling |
| Hole Location | On-Center |
| Workpiece Shape | Cylindrical |
| METRIC SPECIFICATIONS |
|
| Hole Diameter Min (mm) | 4 |
| Hole Diameter Max (mm) | 25 |
| Hole Depth Max (mm) | 2000 |
| Workpiece dimensions (mm) | 1000, 1500, 2000 |
| Workpiece weight max (kg) | 500 |
| IMPERIAL SPECIFICATIONS |
|
| Hole Diameter Min (in) | 0.16 |
| Hole Diameter Max (in) | 1 |
| Hole Depth Max (in) | 78.74 |
| Workpiece dimensions (in) | 40, 60, 80 |
| Workpiece weight max (lbs) | 1103 |
