Deutsch| Number of Spindles | 1, 2 |
|---|---|
| Process Type | Rifling |
| Hole Location | On-Center |
| Workpiece Shape | Cylindrical |
| METRIC SPECIFICATIONS |
|
| Hole Diameter Min (mm) | 4 |
| Drill Diameter Max (mm) | 12.7 |
| Hole Diameter Max (mm) | 12.7 |
| Hole Depth Max (mm) | 1500 |
| Workpiece dimensions (mm) | 1000, 1500 |
| Workpiece weight max (kg) | 200 |
| IMPERIAL SPECIFICATIONS |
|
| Hole Diameter Min (in) | 0.16 |
| Drill Diameter Max (in) | 0.5 |
| Hole Diameter Max (in) | 0.5 |
| Hole Depth Max (in) | 59.06 |
| Workpiece dimensions (in) | 40, 60 |
| Workpiece weight max (lbs) | 441 |

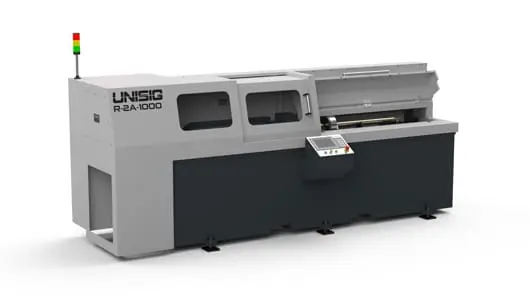

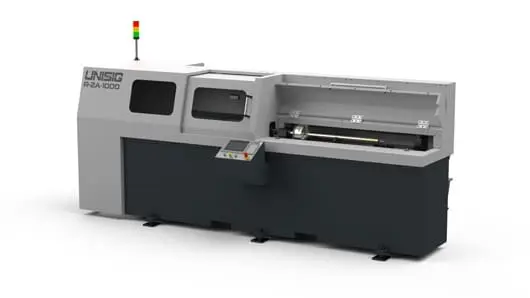

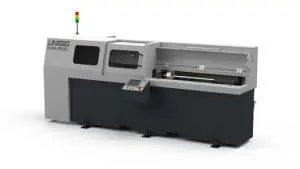

R-2A
Rifling machines for small caliber barrels with automation available
